Olympus EPOCH 650 Ultrasonic Flaw Detector

Up for sale used Olympus Epoch 650 Compact Handheld Ultrasonic Flaw Detector has been tested and is in good working condition. Comes with 90 Days warranty.

Specifications

• PRF: 10 Hz to 2000 Hz in 10 Hz increments
• Pulse Width: Adjustable from 25 ns to 5,000 ns (0.1 MHz) with PerfectSquare technology
• Gain: 0 to 110 dB
• Receiver Bandwidth: 0.2 MHz to 26.5 MHz at –3 dB
• System Linearity: Horizontal: ± 0.5% FSW
• Resolution: 0.25% FSH, amplifier accuracy ± 1dB
• Reject: 0 to 80% FSH with Visual Warning
• Amplitude Measurement: 0 to 110% full screen height with 0.25% resolution
• Automated Calibration: Velocity, Zero Offset Straight Beam (First Backwall or Echo-to-Echo) Angle Beam (Soundpath or Depth)
• Test Modes: Pulse Echo, Dual, or Through Transmission
• Range: 3.36 mm to 13,388 mm (0.132 in. to 527.10 in.) at 5,900 m/s (0.2320 in./µs)
• Velocity: 635 m/s to 15240 m/s (0.0250 in./µs to 0.6000 in./µs)
• Zero Offset: 0 to 750 µs
• Refracted Angle: 0° to 90° in 0.1° increments
• Measurement Gates: 2 fully independent gates for amplitude and TOF measurements

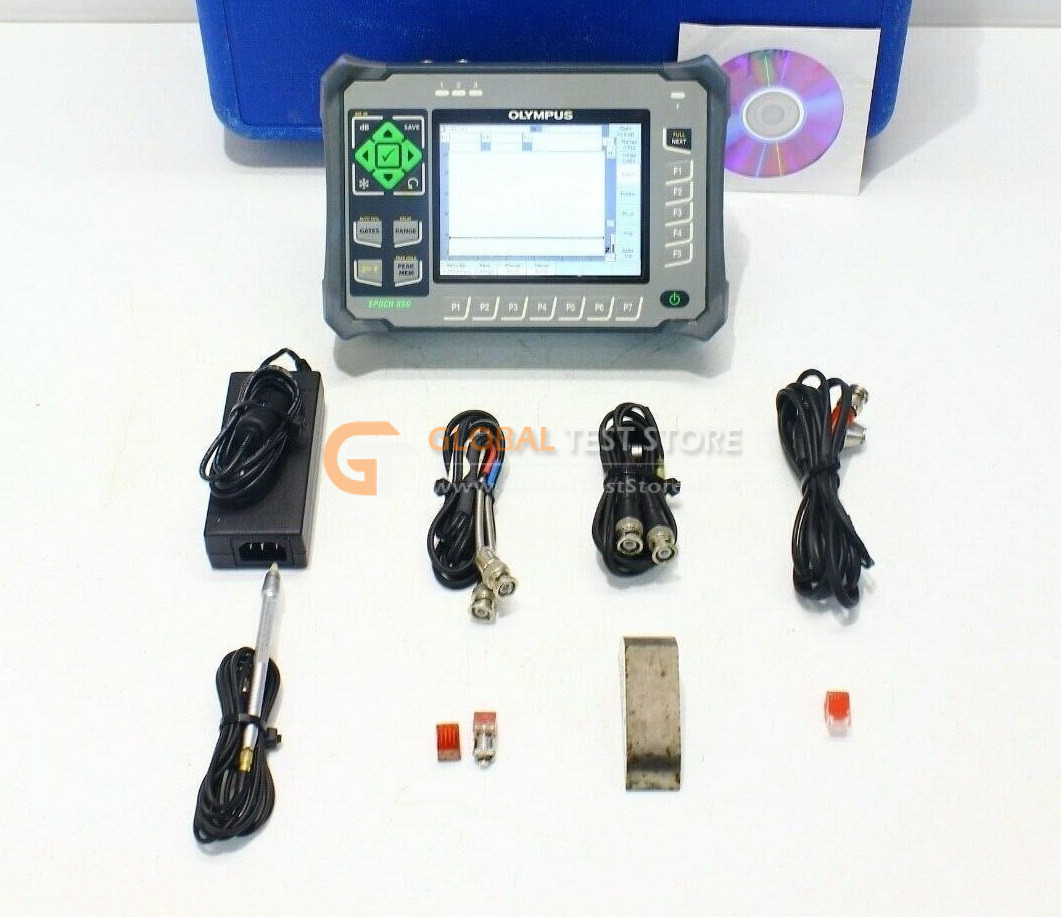

Items Included:

• Olympus Epoch 650 unit
• Charger for unit
• User instructions
• Olympus ABSA-4T 60′ steel
• Olympus ABSA-4T 70′ steel
• Olympus ABSA-4T-45 45′ steel
• Olympus DHC713 dual transducer
• Olympus Sonopen V260-SM delay line transducer
• Dual element transducers
• MAB Miniature Angle Beam Calibration Block
• Hard carrying case
