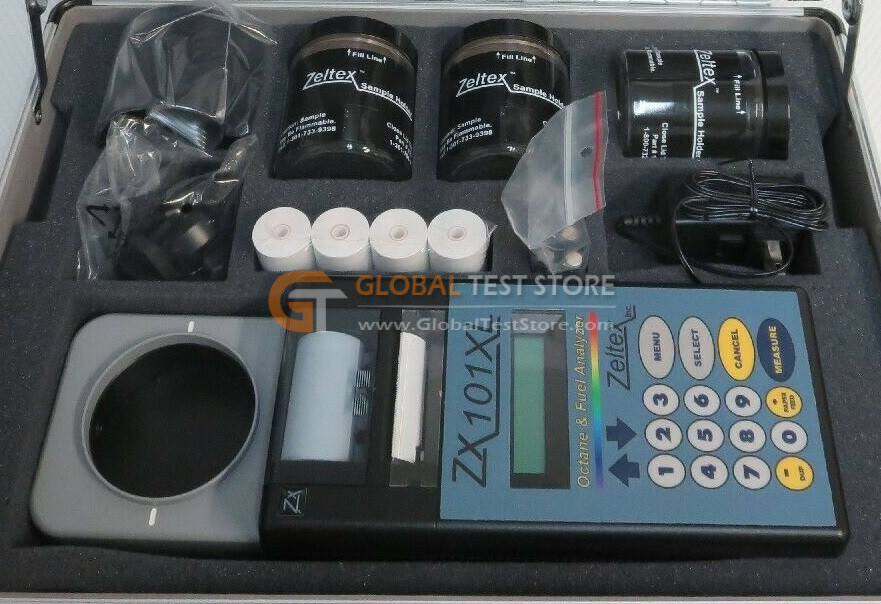

Flash Sale New Zeltex ZX-101XL Portable Near-Infrared Octane/Cetane Analyzer. Comes with 1 Year warranty. Everything is guaranteed 100% functional with no issues.
The patented ZX-101XL utilizes highly accurate and reliable near-infrared spectroscopy for analysis of octane and cetane levels in gasoline, ethanol blended gasoline (e-gas), and diesel fuel.
Unique Design Features Add Versatility, Dependability and Convenience
- Automatic fuel detection (Gasoline/E-Gas/Diesel)
- Less than one minute warm up time
- Stores data for up to 25 samples
- Precalibrated for unleaded and Ethanol blended fuels
- Optional diesel cetane index and cetane number calibrations available
- Automatic temperature compensation
- Displays results in less than 20 seconds
- Self-standardizing to ensure accuracy
- Easy-loading sample holder
- Easy-to-read LCD display
- Built-in printer that includes time and date of analysis
- Optional GPS locator – GPS data is printed and stored
- RS-232 port for PC interface
- Optional USB capability
- [(R+M)/2], RON, MON
- Can store up to 10 separate gasoline formula calibrations
- Small, lightweight, and easy to use
- Operates on “AA” batteries or AC Power
- Sturdy aluminum carrying case
Zeltex ZX-101XL Specifications:
System Capabilities
- Precalibrated for: Octane number RON, MON, (R+M)/2
- Optional Calibrations: Diesel cetane index, cetane number
- Outputs: LCD display, built-in printer
- Data Transfer: Via RS-232 port for interface with PC
- Data Analysis: Includes full calibration software
- Results: Traceable to CFR Engine or other fuel lab standards
- Calibrations: Stores up to 10 calibration sets
- Data Storage: Stores data for up to 25 samples
Optical Capabilities
- Measurement Mode: Diffuse transmittance
- Spectrum Range: 14 filters covering wavelengths from 893 to 1045 nm
- Scan Speed: Up to 10 scans per second
- Optical Range: 0 to 6 AU
- Resolution: 0.00001 AU
- Stability: 0.05 Mili-AU
- Measurement Time: Variable (Typically under 20 seconds)
Sample Information
- Sample Size: 200mL with 75 mm path length
- Sample Holder: Reusable glass with chemical seal cover
- Sample Preparation: None required
- Sample Destruction: None
Physical Data
- Dimensions: 5W X 14L X 4H (12 cm X 36 cm X 11 cm)
- Weight: 3 lbs. (less than 2 kg)
- AC Power Requirements: 120 or 240 VAC 50/60 Hz AC adapter (supplied)
- DC Power Requirements: 6 AA alkaline batteries (included),,optional 12V automobile adapter
- Power Consumption: 750 ma
Included:
- 3 Sample Jars
- USB 3.0 Cable
- Set of Printer Paper
- Quick Start Guide
- Light shield
- User Manual
- Power Supply
