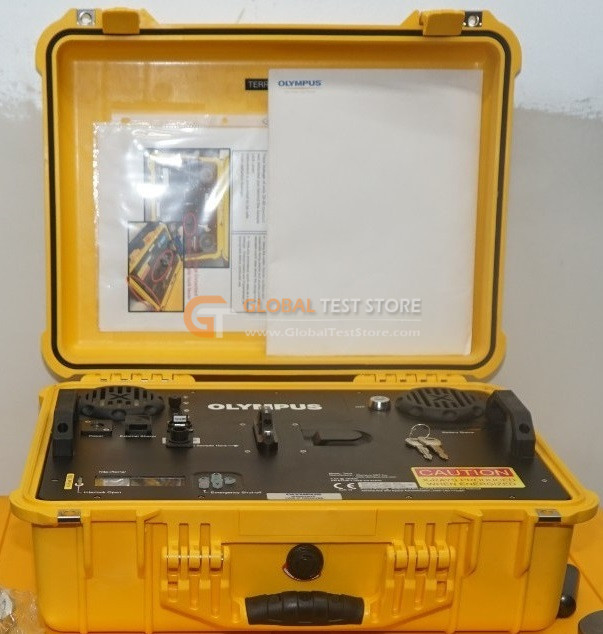

Olympus TERRA Field Portable XRF Analyzer

Flash Sale used Olympus TERRA Field Portable XRF Analyzer has been tested and is in good working condition. Comes with 90 Days warranty.

The Terra system is a rugged, portable field instrument which uses dual XRD and qualitative XRF technology for earthbound applications. Using a specifically developed direct excitation charge coupled device (CCD) “camera”, Terra is able to collect X-ray photon data for both X-ray diffraction and X-ray fluorescence simultaneously. Typical uses include: Rapid ID of dangerous hazardous materials, explosives, fusing materials & accelerants; non-destructive fingerprinting of drug formulations & precursors; and testing for presence and quantity of foreign or substitute ingredients.

• Category Chemical; Explosives
• Detection Method: X-ray Diffraction (XRD); X-ray Fluorescence (XRF)
• Detection Principle: Elemental Analysis
• Application: Laboratory Analysis; Bulk Analysis
• Type: Instrument
• Availability: Commercially Available
• Readiness Level: 9
• Market Entry Date: 2008
• User Feedback Sources: MRIGlobal hands-on experience
• Support Documents: Not Specified

Operational Parameters

• Tested for Chemical Agents: Not Applicable
• Tested for ITF25TICTIMs: Not Applicable
• Tested For Explosives: Yes
• Tested For Narcotics: Yes
• Other Chemical Targets: Modes available include: Soil, Mining, Alloy, Fluids and Consumer Goods
• Tested For Biological Agents: Not Applicable
• Other Biological Targets: Not Applicable
• Radiological Targets: Not Applicable
• Library Size: Several commercial libraries available
• Customize For New Targets: Yes
• Sample Introduction: Solid
• Sensitivity Detection Limits: ppm; %
• Known Interferents Inhibitors: Not Specified
• False Positive Rates: Not Specified

Terra Portable XRD/XRF

• False Negative Rates: Not Specified
• Start-Up Time From Cold Start To Sample Ready: 1.5 minutes
• Response Time Sample Application To Output: 5 to 15 minutes
• Total Run Time: Minutes
• Alarm Capability: No
• Software Control: Remote, Onboard, PC
• Other Operational Parameters: XRD range: 5 – 55° 2?, XRF Energy Range: 3 – 25 keV, 250 eV resolution, Sample Size: 15 mg; X-Ray tube voltage: 30kV, X-ray tube power: 10W, Xray target material: Cu or Co (Cu standard), Sampling: Dry powder is placed into a small chamber.

Physical Parameters

• Dimensions: 19.1 x 15.4 x 7.6 in (48.6 x 39.2 x 19.4 cm)
• Weight: 32 lbs (14.5 kg)
• Power Requirements: 110 to 220 VAC, 50 to 60 Hz, 70 W max 4 hr rechargeable batteries
• Noise Produced: Not Specified

Logistical Parameters

• Transportability: Person-Portable
• Durability: Rugged, shock and vibration tested
• Operating Conditions: -10 to 35°C (14 to 95°F), 10 to 90%, RH noncondensing
• Consumables: Mylar windows ($100/set of 10)
• Solvents Reagents: Not Applicable
• Calibration Schedule: Standardization and test samples are included in the kit for use before sampling
• Shelf Life: 10 years
• Expected Operational Life: Indefinite
• AvailableAccessories: Spinner sample holder, sample preparation accessories
• Data Analysis Support Equipment: Windows XP, X-Powder software
• Data File Type Format: TXT
• Communications Interface: USB, Bluetooth, 802.11b/g for remote control from web browser

Includes:

• Spinner sample holder
• Power Supply / Charger
• Battery
• Carrying Case
• USB
• 10 Sets Mylar Windows
• 90 Days Warranty
