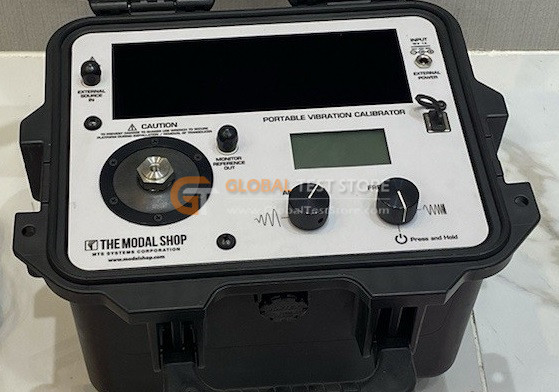

Flash Sale Brand New The Modal Shop 9100D Portable Vibration Calibrator. Comes with 1 Year warranty. Everything is guaranteed 100% functional with no issues.
The 9100D incorporates a built-in sine wave oscillator, power amplifier, electrodynamic shaker, NIST traceable reference accelerometer and digital display. The 9100D is completely self-contained and operates on battery or AC power.
The built-in reference accelerometer is attached permanently to the shaker armature, maximizing the accuracy between the reference accelerometer and the test transducer. The 9100D is designed to provide long-term reliable performance over the frequency range of 7 Hz to 10 kHz. The 9100D can be used for a variety of applications that include:
- Verification and calibration of vibration transducers and related test systems
- Verification of connector and cabling integrity
- Verification of speed indicator measuring systems
Specifications and Performance:
- General
- Frequency Range (operating, 100 gram payload): 7 Hz – 10 kHz | 420 – 600 k CPM
- Maximum Amplitude (100 Hz no payload)
* 20 g pk | 196 m/s2 pk
* 15 in/s pk | 380 mm/s pk
* 50 mils pk – pk | 1270 µm pk – pk - Maximum Payload[1] : 800 gram
Accuracy of Readout
MEASURED WITH 10 GRAM QUARTZ REFERENCE ACCELEROMETER
- Acceleration (30 Hz to 2 kHz): ± 3%
- Acceleration (7 Hz to 10 kHz): ±1 dB
- Velocity (10 Hz to 1000 Hz): ± 3%
- Displacement (30 Hz to 150 Hz): ± 3%
- Amplitude Linearity (100 gram payload, 100 Hz): < 1% up to 10 g pk
- Waveform Distortion (100 gram payload, 30 Hz to 2 kHz): < 5% THD (typical) up to 5 g pk
Included Accessories:
- Mounting Wrench
- Mounting Pad (080A118)
- ¼-28 to ¼-28 Adaptor (081B20)
- 10-32 to ¼-28 Adaptor (081A08)
- Power Supply and Plug
- Adaptors (9100-PS01)
- A Certificate of Calibration
