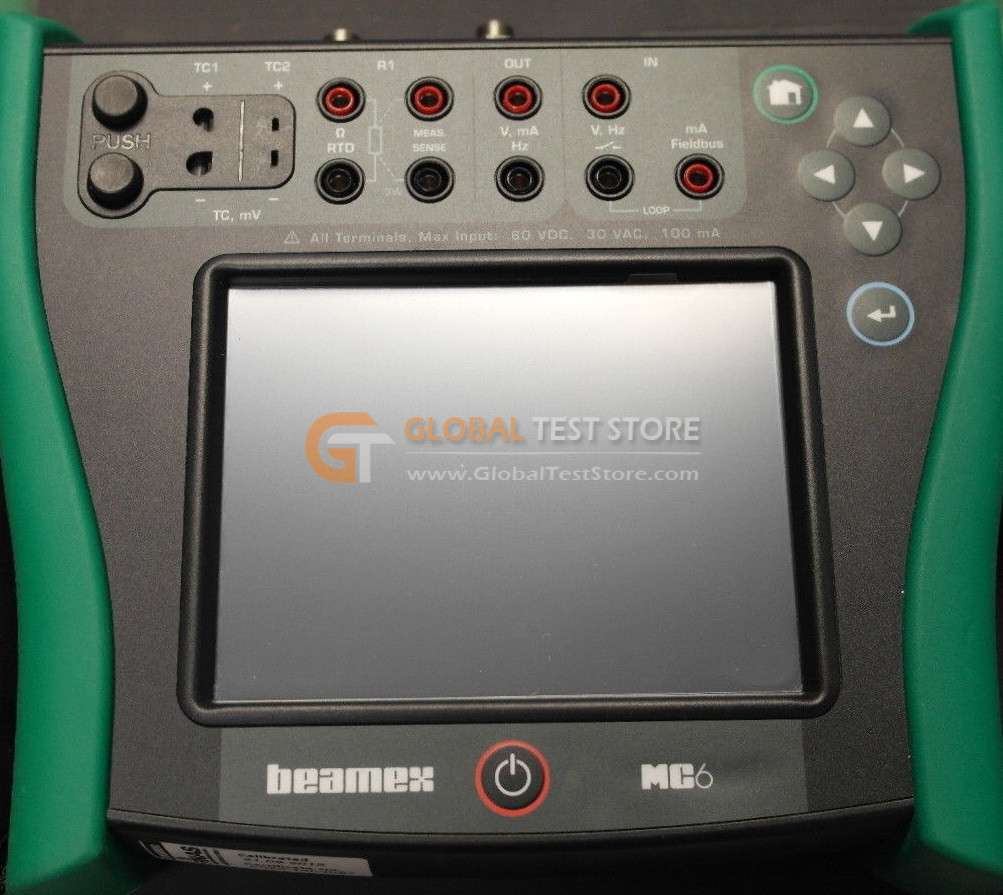

Brand New Beamex MC6 Documenting Process Calibrator

Flash Sale New Beamex MC6 Documenting Process Calibrator includes calibrator, external pressure module, calibration documentations. Comes with 2 Year warranty. Everything is guaranteed 100% functional with no issues.

Beamex MC6 is an advanced, high-accuracy field calibrator and communicator. It offers calibration capabilities for pressure, temperature and various electrical signals. The MC6 also contains a fieldbus communicator for HART, FOUNDATION Fieldbus and Profibus PA instruments.

MC6 main features

• High accuracy: Reliable and stable calibrator with unmatched accuracy for demanding industrial conditions.
• Advanced functionality: Multifunction calibrator with calibration capabilities for pressure, temperature, and various electric signals.
• Enhanced usability: This multilingual calibrator is optimized for different use cases and guides you step-by-step in your calibration work.
• Field communicator: Multi-bus communicator for HART, FOUNDATION Fieldbus and Profibus PA instruments
• Digital data flow: Communicates with Beamex calibration management software for a fully digitalized calibration process.

Beamex MC6 Specifications:

• Display: 5.7″ Diagonal 640 x 480 TFT LCD module
• Touch panel: 5-wire resistive touch screen
• Keyboard: Membrane keyboard
• Backlight: LED backlight, adjustable brightness
• Weight: 1.5…2.0 kg (3.3…4.4 lb)
• Dimensions: (D x W x H) 200 mm x 230 mm x 70 mm (7.87″ x 9.06″ x 2.76″)
• Battery type: Rechargeable lithium-ion battery, 4300 mAh, 11.1 V
• Charging time: Approximately 4 hours
• Charger supply: 100…240 VAC, 50–60 Hz
• Battery operation time: 10…16 hours
• Operating temperature: −10…45 °C (14…113 °F)
• Operating temperature while charging batteries: 0…30 °C (32…86 °F)
• Storage temperature: −20…60 °C (−4…140 °F)
• Specifications valid: −10…45 °C, unless other mentioned
• Operating humidity: 0…80% R.H. non-condensing
• Computer interface: USB / Bluetooth
• Calibration certificate: Accredited calibration certificate
• Warmup time: Specifications valid after a 5 minute warmup period.
• Max. input voltage: 30 V AC, 60 V DC
• Display update rate: 3 readings/second
• Safety: Please see EU/UKCA declaration on Beamex website
• EMC: Please see EU/UKCA declaration on Beamex website
• Ingress protection: IP65
• RoHS compliance: Please see EU/UKCA declaration on Beamex website
• Drop test: IEC 60068-2-32. 1 meter (3.28 ft)
• Vibration: IEC 60068-2-64. Random, 2 g, 5…500 Hz
• Max altitude: 3000 m (9842 ft)
• Warranty Warranty: 3 years. 1 year for battery pack.

Package Includes:

• Accredited calibration certificate
• User manual, various languages available
• USB communication cable
• Hand and shoulder straps (installed)
• Internal Li-ion battery (installed)
• Battery charger with country-specific plug
• Test leads and clips
• PGXH Hydraulic Calibration Pump
• PGM Pressure Pump
• PGV Vacuum Pump
• calibration documentations
• 2 Year Warranty
