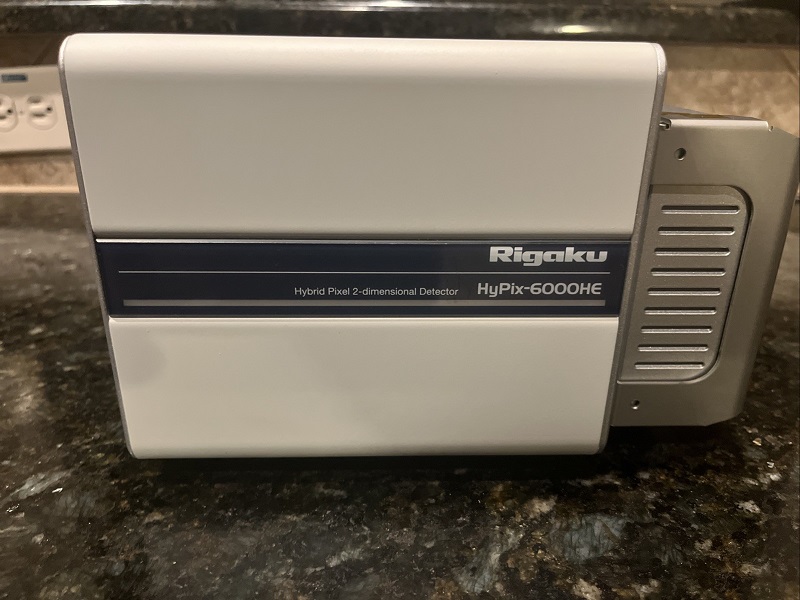

Up for sale Rigaku Hypix 6000 HE Detector is in perfect working condition and ready to use! Comes with 60 days warranty. It also comes with the necessary correction files for the image plate, a protective Pelican case, the detector server, all necessary cables, and a power supply to ensure full operational capability.
KEY FEATURES
- User-inspired CrysAlisPro software tightly integrated with new goniometer features and highly parallelized for speed and throughput.
- “What is This?” software function for small molecule structure determination in minutes.
- PhotonJet-S, third-generation microfocus X-ray sources with longer tube life, higher-performance optics, improved alignment mechanism and, best of all, higher flux.
- Single or dual source options (Cu, Mo or Ag).
- HyPix-6000HE, Hybrid Photon Counting (HPC) detector has extremely low noise and high dynamic range.
- Goniometer includes faster motor speeds, telescoping 2q arm, electronically controlled brightness of cabinet and crystal lighting, and ±2q accessibility for more efficient data collection strategies.
- New enclosure conforms to the most stringent of X-ray safety guidelines and offers ample experimental workspace and accessibility.
- True shutterless data collection. The high dynamic range of the detector means that weak and strong reflections can be measured on the same image and there is no need to perform a fast data set to measure strong reflections.
Rigaku Hypix 6000HE Specifications
- Technology: Hybrid Photon Counting (HPC) direct X-ray detection
- Active Area: 77.5 mm × 80.3 mm (~6,000 mm²)
- Pixel Size: 100 μm × 100 μm
- Pixel Array: 775 × 770 pixels
- Dynamic Range: 16-bit to massive 31-bit counter depth (depending on operating mode)
- Frame Rate: Up to 100 Hz
