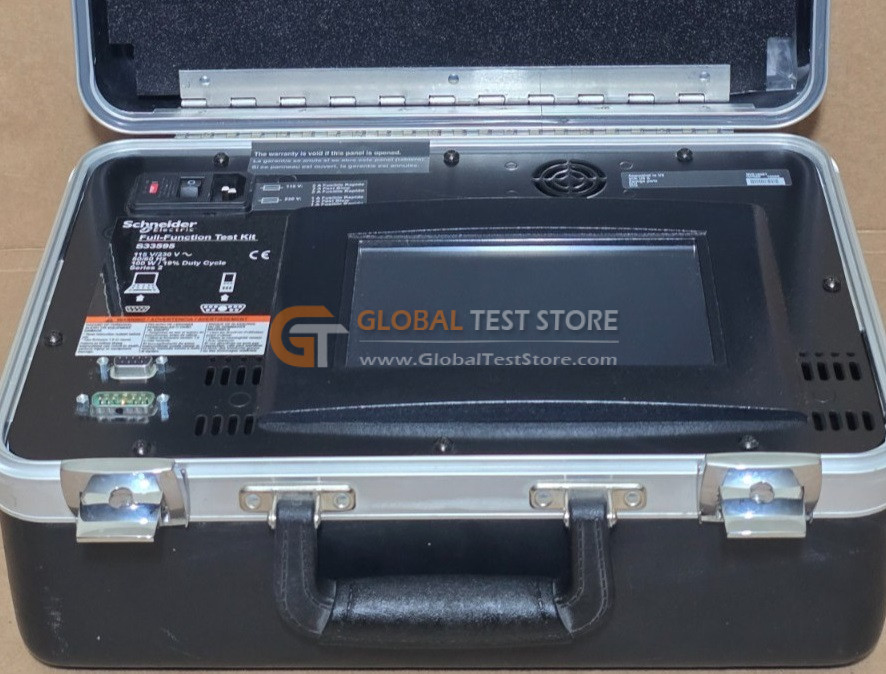

Schneider Electric S33595 Circuit Breaker Series 2

Flash Sale New Schneider Electric S33595 Full Circuit Breaker Function Test Kit Series 2. Comes with 1 Year warranty. Everything is guaranteed 100% functional with no issues.

The full-function test kit consists of a signal-injection box which can be use alone or with a supporting personal computer (PC). The optional test kit software is compatible with Windows 95, 98 and Windows NT Operating systems. The Full-function Test Kit (FFTK) supports testing of a wide variety of trip units in Masterpac NW/NT, Powerpact and Compact circuit breakers.

Specifications:

• Fuse
  120 Vac Applications: 2 A, 250 Vac, Fast-blow (Recommended Fuse: Bussman Part No. AGC-2)
  230 Vac Applications: 1A, 250 Vac, Fast-blow (Recommended Fuse: Bussman Part No. AGC-1)
• Nominal Operating Voltage: 115-230 Vac
• Operating Voltage Range: 102-144 Vac/207-253 Vac
• Operating Frequency: 50 Hz/60 Hz
• Operating Temperature: -20 – 50°C

The test kit without a supporting PC may be used to check:

The mechanical operation of the circuit breaker
The electrical continuity of the connection between the tripping coil and the trip unit
Trip unit operation
– Display of settings
– Operating tests on the electronic component
– Automatic and manual tests on protection functions (trip curve verification)
– Tests on the Zone-Selective Interlocking (ZSI) function
– Inhibition of the ground-fault protection for equipment
– Inhibtion of the thermal imaging
Save test data into test kit

The following trip units can be tested with the FFTK:

• STR22ME, STR22GE, STR22SE
• STR23SE, STR23SP, STR43ME
• STR53UP, STR53UE
• ET 1.0M
• ET 1.0I
• ET1.0
• Micrologic 2.0, 3.0, 5.0
• Micrologic 2.0A, 3.0A, 5.0A, 7.0A
• Micrologic 5.0P, 5.0H, 7.0P, 7.0H
• Micrologic 6.0A, 6.0P, 6.0H
