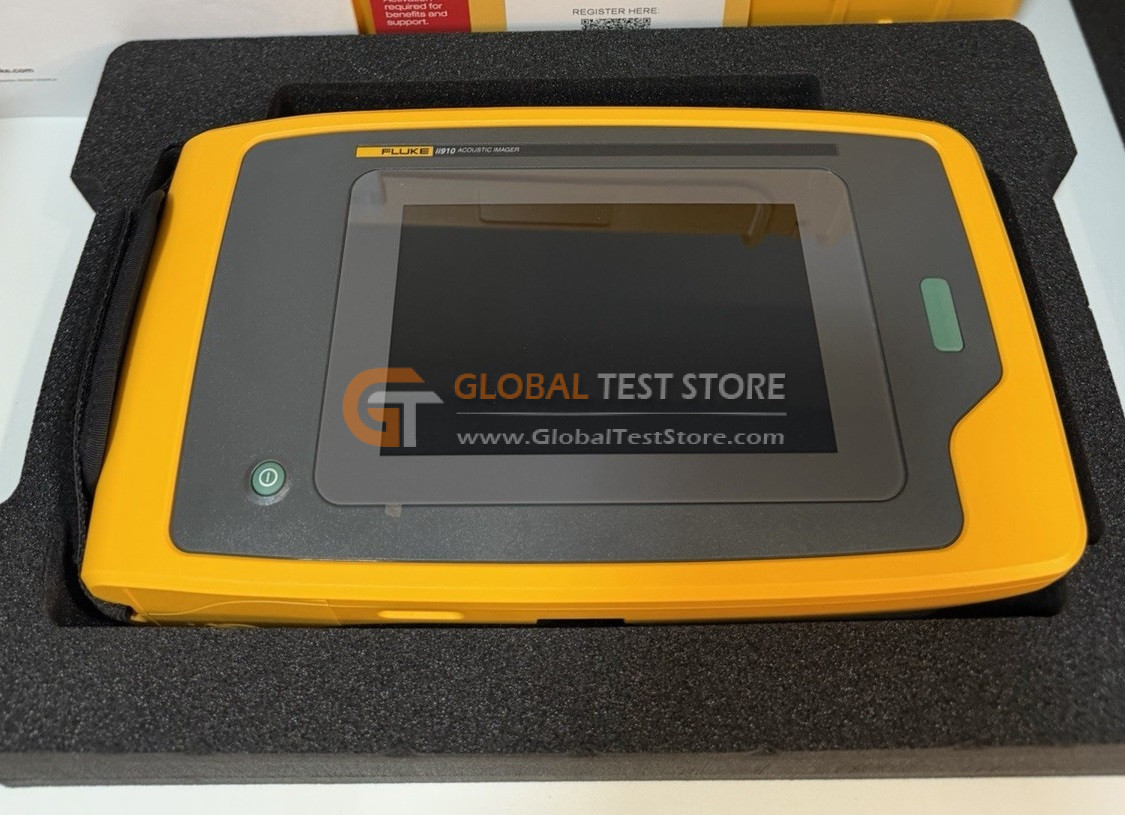

FLUKE ii910 Acoustic Imager

Up for sale FLUKE ii910 Acoustic Imager is a high-quality, brand new, sealed product manufactured by Fluke in the United States. This acoustic imager comes with accessories included and is ideal for use in areas such as testing, measurement, and inspection. Comes with 1 Year warranty.

Key features

• Ease of use: Intuitive user interface
• Trend graphs: Frequency and dB scale
• Spot markers: dB level reading at center point of the image
• Asset ID: QR code based asset ID identification
• Asset inspection status: ‘As left’; ‘As found’; ‘Undetermined’
• Photo notes: Up to 4 photos notes for reference
• Source: Show single or multiple sources
• Profile: Preset capture profiles
• Annotation: Asset name; Asset ID; Asset type; Leak type; Gas type; Pressure.
• Other: Operating conditions; Weather notes
• Leak values: Leak costs; Leak volume; LeakQ™ scale
• Actions: Action requirements; Action priority level; Action notes

FLUKE ii910 Acoustic Imager Specifications

Sensors

• Frequency band: 2 kHz to 100 kHz
• Detection range: .5 m to >120 m (1.6 to >393 feet)*
• Field of view: 63°± 5°
• Nominal frame rate: 25 FPS

Built-in digital camera (visible light)

• Field of view: (FOV) 63°± 5°
• Focus: Fixed lens
• Zoom: 3 x digital zoom
• Resolution: 5 MP

Display

• Size: 7″ LCD with backlight, sunlight readable
• Resolution: 1280 x 800 (1,024,000 pixels)
• Touchscreen: Capacitive
• Acoustic image: Yes, SoundMap™ image

Image storage

• Storage capacity: 20GB (>5000 pictures / >999 videos)
• Image format: Blended visual and SoundMap™.JPG or .PNG
• Video format: Blended visual and SoundMap™.MP4
• Video length: Up to 5 minutes
• Digital export: USB-C for data transfer

Included:

• Fluke II910 Acoustic Industrial Imager
• AC Adapter
• Power Cord
• Battery Charger
• User Manual On CD-ROM
• Carrying Case
• 1 Year Warranty
