Up for sale Used Digitrak Falcon F5 HDD Horizontal Directional Drilling Receiver has been tested and is in good working condition. Comes with 1 Year warranty.
Features
- Real-time display of depth, pitch, roll, and transmitter signal strength
- High-visibility screen for clear readings in bright outdoor environments
- Designed specifically for HDD operations and utility locating
- Advanced signal processing for accurate tracking of drill head position
- Rugged, field-ready construction capable of withstanding harsh jobsite conditions
- Ergonomic design for comfortable use during extended drilling operations
- Compatible with DigiTrak transmitters and HDD locating accessories
- Improves drilling precision and operational efficiency
Receiver Specifications:
- Receiving frequencies: 4.5–45.0 kHz
- Telemetry channels: 4
- Telemetry range: defined by remote display
- Power source: Lithium-ion battery pack
- Battery life: 8–12 hrs
- Functions: Menu-driven
- Controls: Trigger and toggle switches
- Graphic display: Full-color LCD
- Audio output: Beeper
- Operating temperature: -4 to 140° F
- Accuracy: ±5%
- Voltage: 14.4 VDC nominal
- Current: 390 mA max
- Dimensions: 11 x 5.5 x 15 in.
- Weight (with battery): 8.5 lb
Transmitter Specifications
- Transmitting frequencies: 4.5–45.0 kHz
- Pitch resolution: ±0.1% at level
- Data range: 125 ft.
- Depth range: 100 ft.
- Battery life: up to 20/70 hrs alkaline/SuperCell
- Voltage: 1.2–4.2 VDC nominal
- Current: 1.75 A max
- Weight (without batteries): 1.7 lb
- Length x diameter: 15 x 1.25 in.
Included

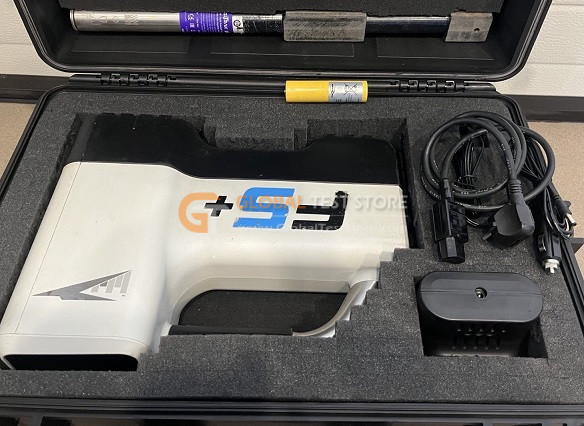

- Digitrak Falcon F5 Receiver
- (1) Digitrak Charger & Cables
- (1) Pre-owned Digitrak Battery
- Hard Shell Carrying Case
- With FT5p transmitter
- 1 Year warranty.
